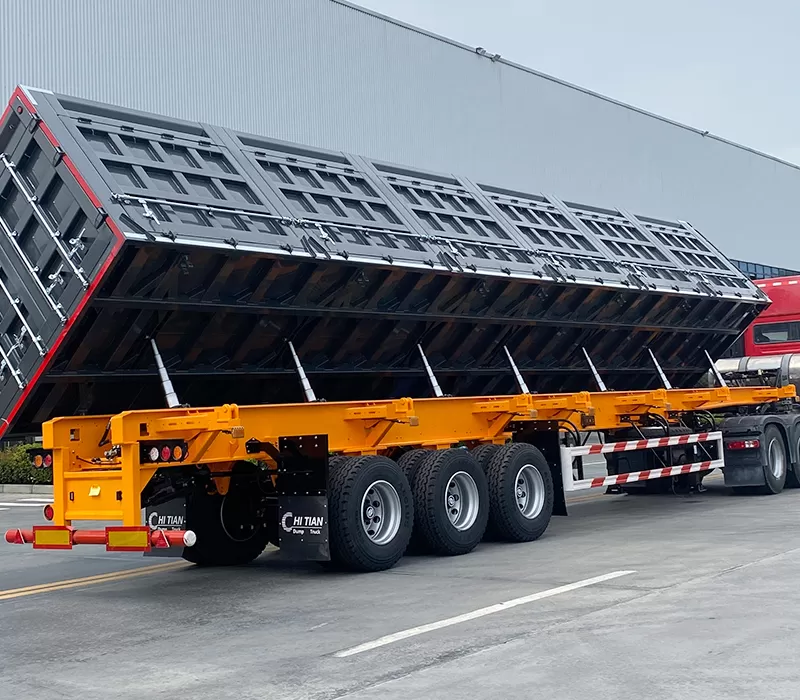

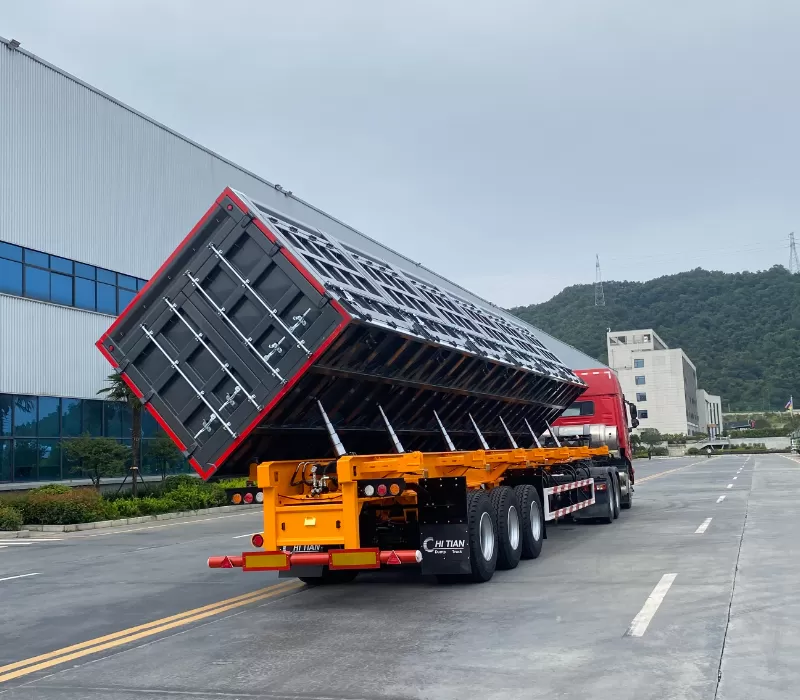

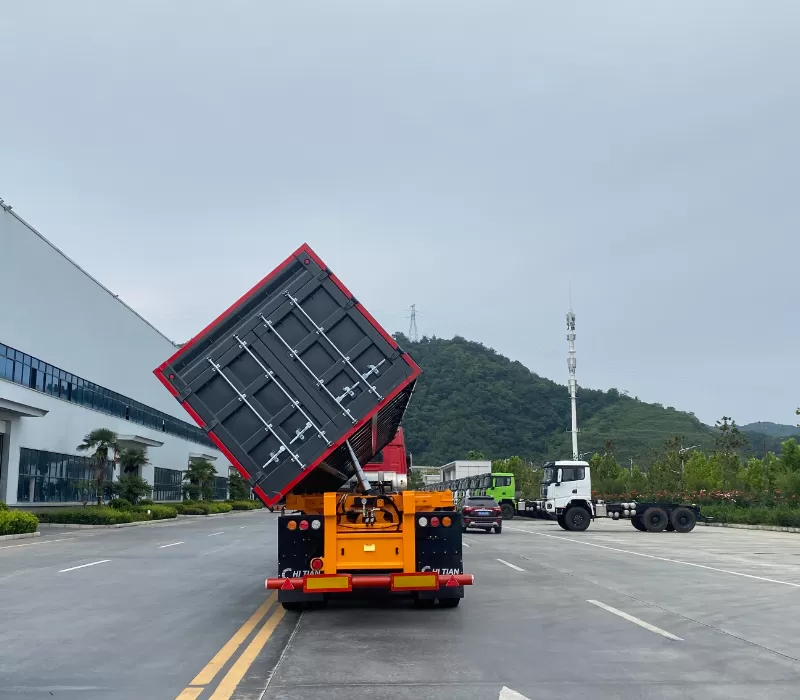

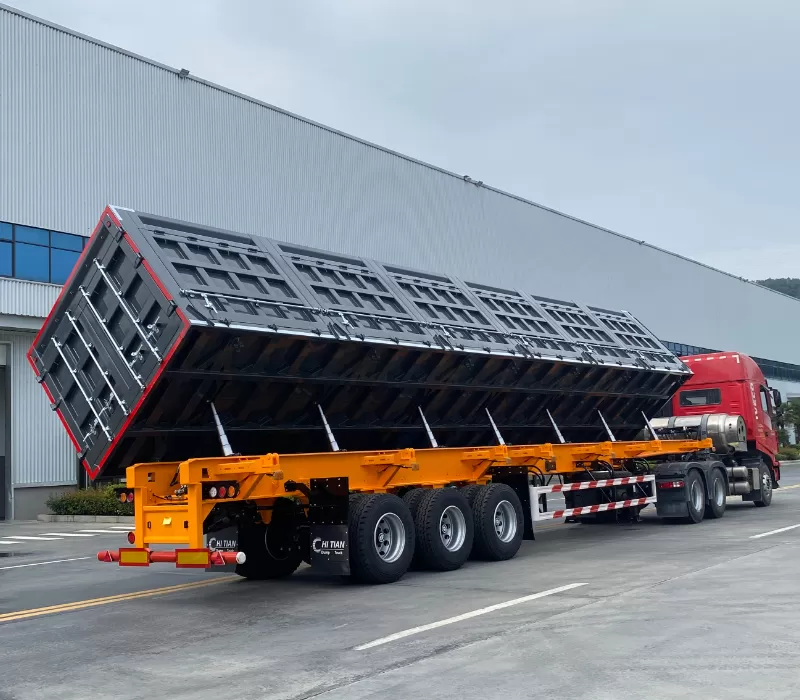

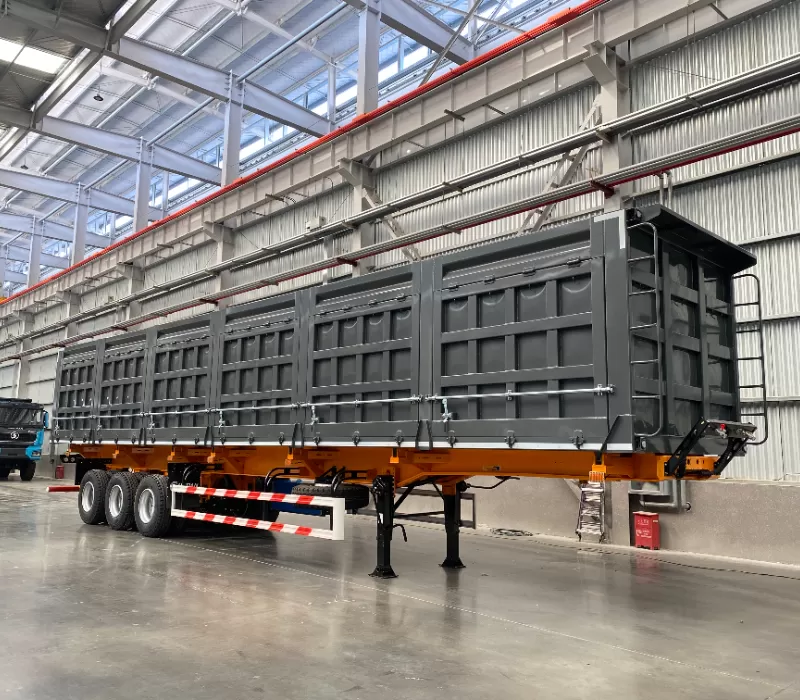

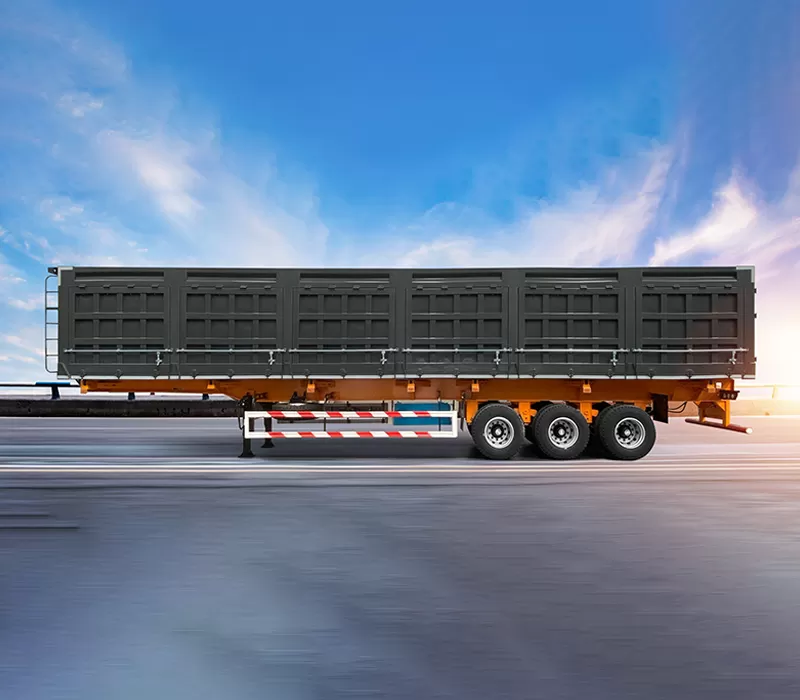

Side dump semi-trailer

Chitian Hydraulic System : Engineered for Excellence

With nearly 30 years of experience in designing and manufacturing hydraulic cylinders, Chitian has become a trusted name in the industry. Our hydraulic cylinders are equipped with high-quality seals imported from Germany, and more than 300,000 units have been installed on vehicles worldwide. Three key features make our hydraulic cylinders stand out:

Chitian High-Polymer Polymer Hydraulic Oil Tank: Designed for Harsh Environments

Widely used in Chitian dump trucks, this high-performance polymer hydraulic oil tank is specially designed to withstand extreme environmental conditions—from scorching heat to severe cold, The primary material used is high-density polyethylene (HDPE), imported from Saudi Arabia. This oil tank offers several key advantages:

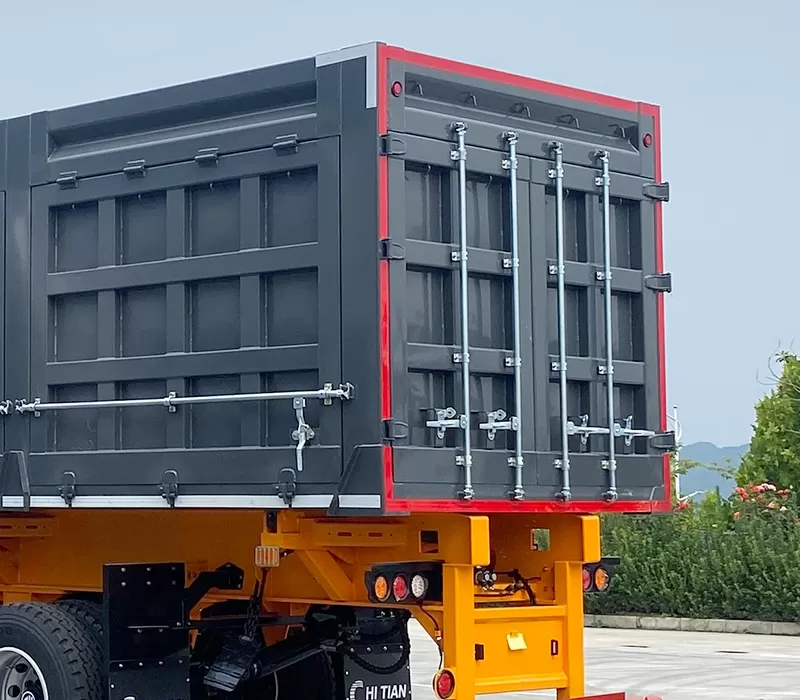

Multiple door design for flexible unloading operations

The cargo box is equipped with multiple doors on the sides and rear, allowing for flexible selection based on the actual site conditions, effectively addressing complex unloading environments and eliminating space constraints. Whether on narrow, complex construction sites or in areas that require frequent unloading, such as mining regions

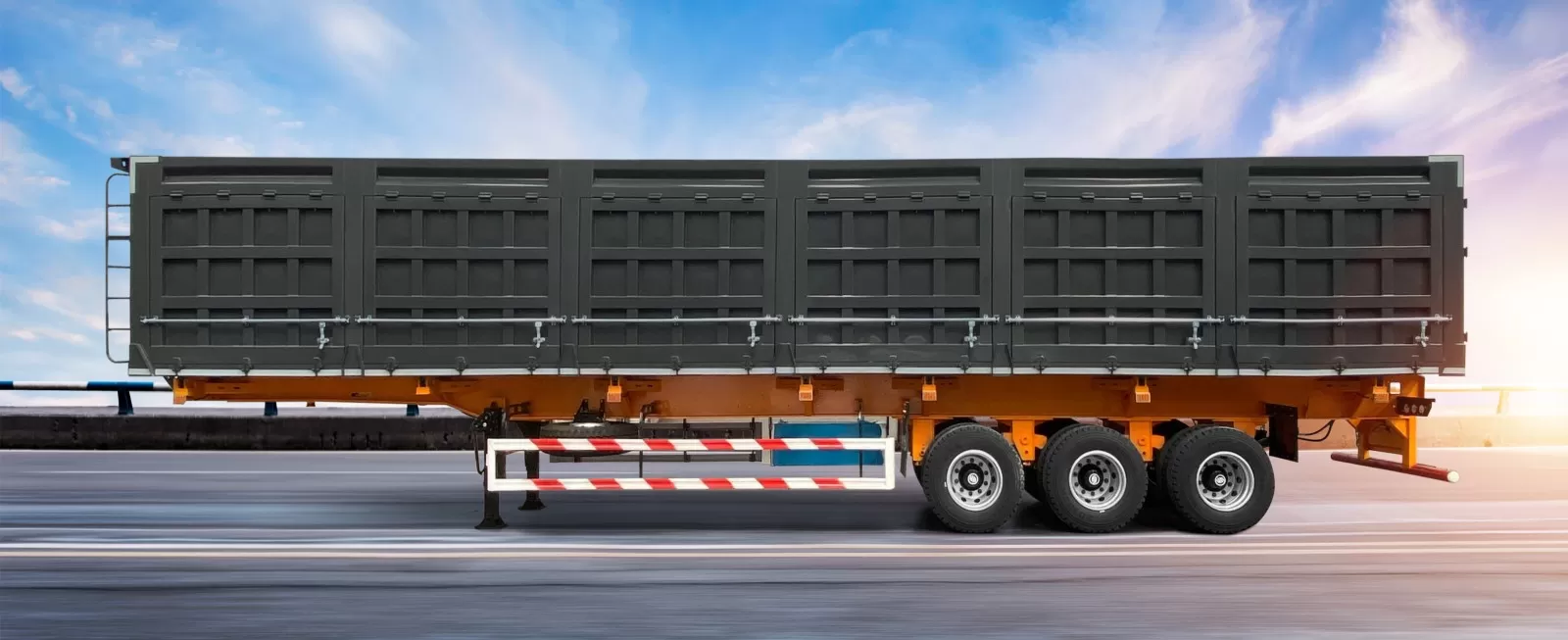

Rectangular box body structure

The traditional rectangular box body features both horizontal and vertical ribs, which enhance the strength and stability of the body. This design improves the cargo box's load-bearing capacity and prevents deformation, making it particularly suitable for heavy-duty transportation. The addition of horizontal and vertical ribs also increases the durability of the body, allowing it to withstand greater impacts and pressure, thereby extending its service life.

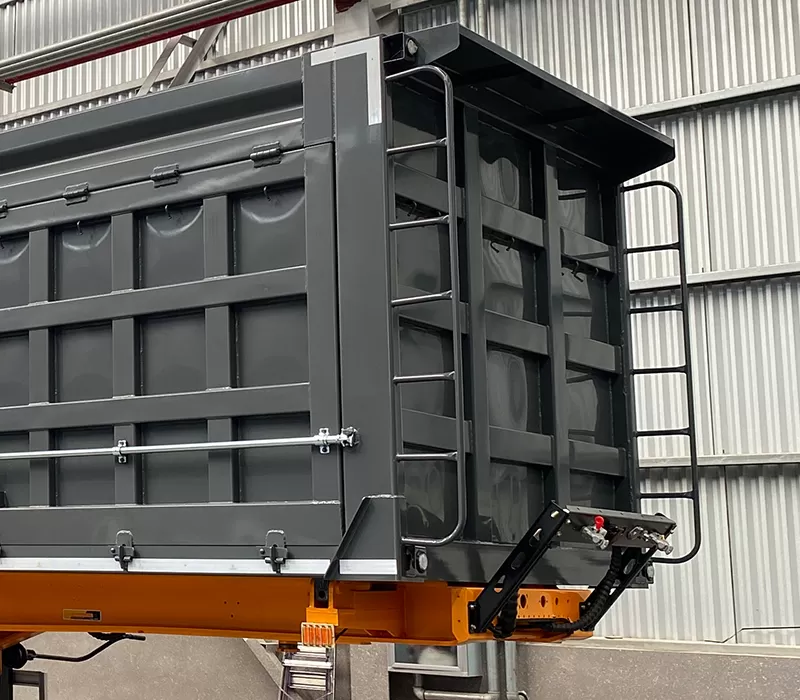

Functional optimization design

The ladder and platform are equipped with anti-slip designs and reinforced structures, allowing operators and maintenance personnel to safely and quickly access the vehicle for daily inspections and maintenance. This significantly enhances work efficiency and operational safety.

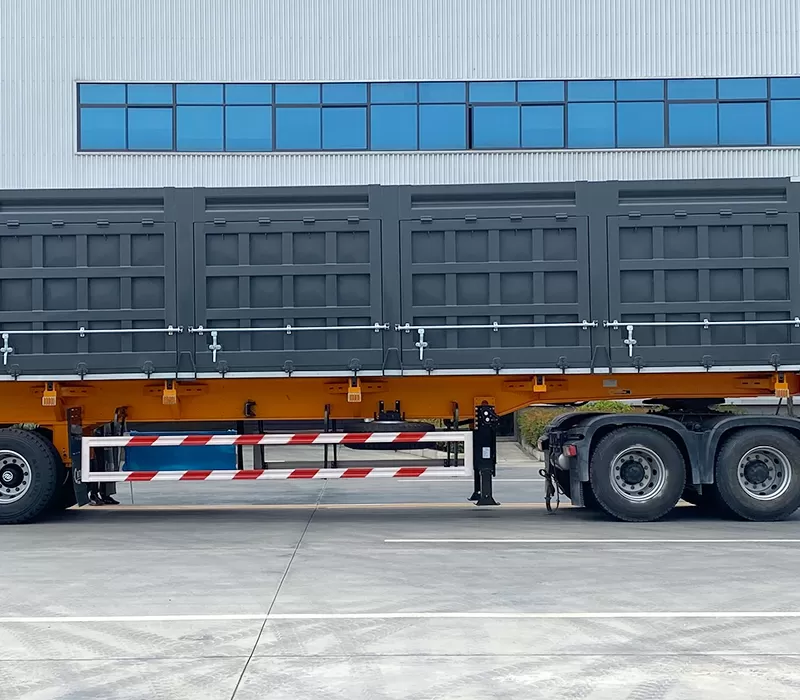

Trailer chassis

The core components of the load-bearing system can use international mainstream products such as BPW and JOST, offering better reliability and easier maintenance.The Elfa hydraulic system features a completely new extreme difference design, truly achieving high pressure without fluctuation and a fault rate of one in a million, leading the world. The brand-new hydraulic intelligent control system ensures more precise operation.

Painting Process

The entire vehicle undergoes robotic powder coating, followed by 18 processes including shot blasting, degreasing, high-temperature baking, and rapid cooling and curing. This results in significant improvements in salt spray performance, weather resistance, and gloss compared to standard paint coatings. The surface coating technology has reached international mainstream standards.
