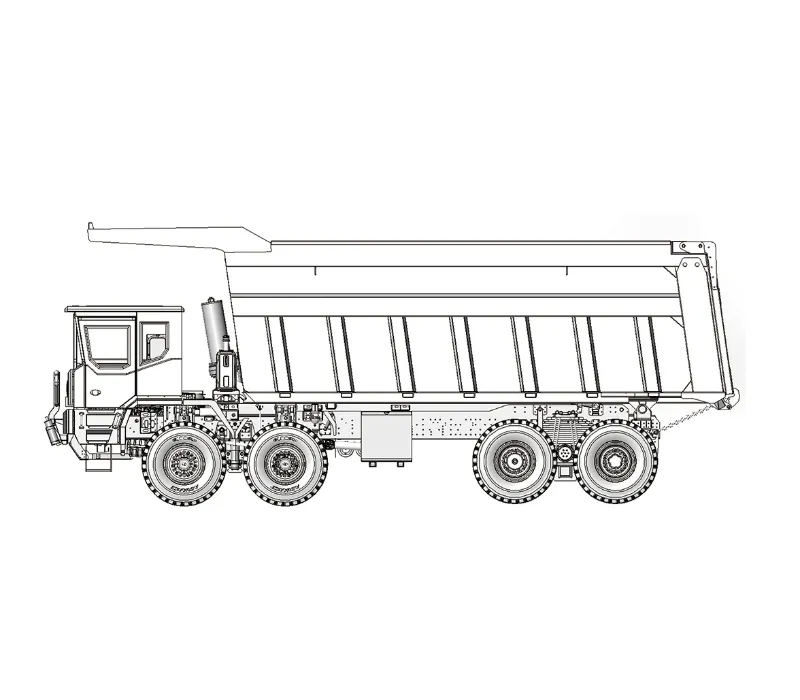

CT150KM (специализированная модель для перевозки угля)

Multiple Powertrain Options & Autonomous Driving

The CT150KM (dedicated coal-hauling model) offers a choice of hybrid, diesel, or pure electric powertrains, allowing for flexible selection of low-carbon or zero-carbon energy sources based on operational needs. This reduces reliance on traditional fossil fuels and lowers carbon emissions. Additionally, the vehicle can be equipped with a manual transmission if required.

High-Strength Steel Flexible Frame

Optimized axle load distribution ensures exceptional driving stability while significantly reducing frame torsion, enhancing overall structural safety. Additionally, the four-circuit braking system delivers outstanding braking performance.

Three-axle to four-axle conversion

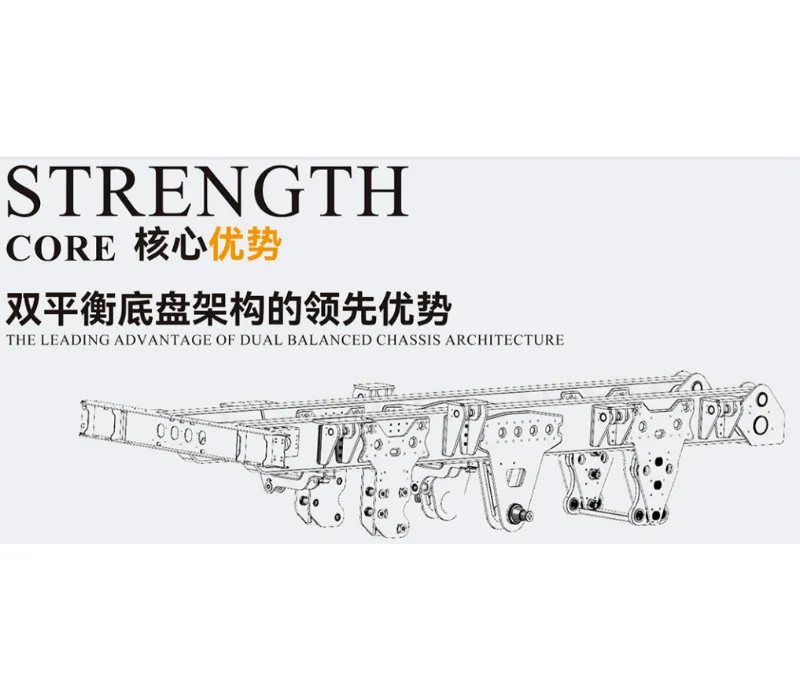

High load capacity, high safety，equipped with a fully hydraulic steering system and dual-axle steering, the 8×4 drive ensures safer heavy-load operation, with an optional upgrade to 8×6 drive. The patented dual-balance suspension technology evenly distributes loads, ensuring stable performance. Additionally, the dual-axle synchronized steering system enhances maneuverability.

Powerful drive system

Equipped with a mining version high-power engine + reinforced mining version gearbox + large-tonnage construction vehicle axles, offering high torque and strong power. The vehicle has excellent climbing ability, high efficiency, fuel economy, and cost-effectiveness. Its compact structure allows it to handle various harsh road conditions perfectly.

Chitian Hydraulic System : Engineered for Excellence

With nearly 30 years of experience in designing and manufacturing hydraulic cylinders, Chitian has become a trusted name in the industry. Our hydraulic cylinders are equipped with high-quality seals imported from Germany, and more than 300,000 units have been installed on vehicles worldwide. Three key features make our hydraulic cylinders stand out:

Chitian High-Polymer Polymer Hydraulic Oil Tank: Designed for Harsh Environments

Widely used in Chitian dump trucks, this high-performance polymer hydraulic oil tank is specially designed to withstand extreme environmental conditions—from scorching heat to severe cold, The primary material used is high-density polyethylene (HDPE), imported from Saudi Arabia. This oil tank offers several key advantages:

Tyre features

Significantly lowers the risk of front-wheel blowouts during heavy-load descents. 18% reduction in single-wheel load, enabling cross-platform tire applications and significantly reducing tire consumption.

Extra-Large Cargo Capacity for Greater Transport Efficiency

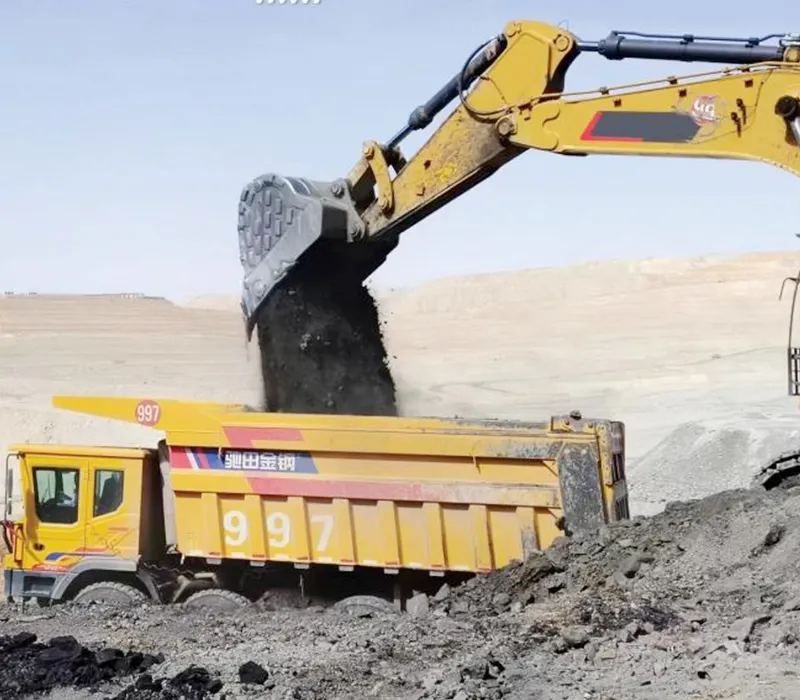

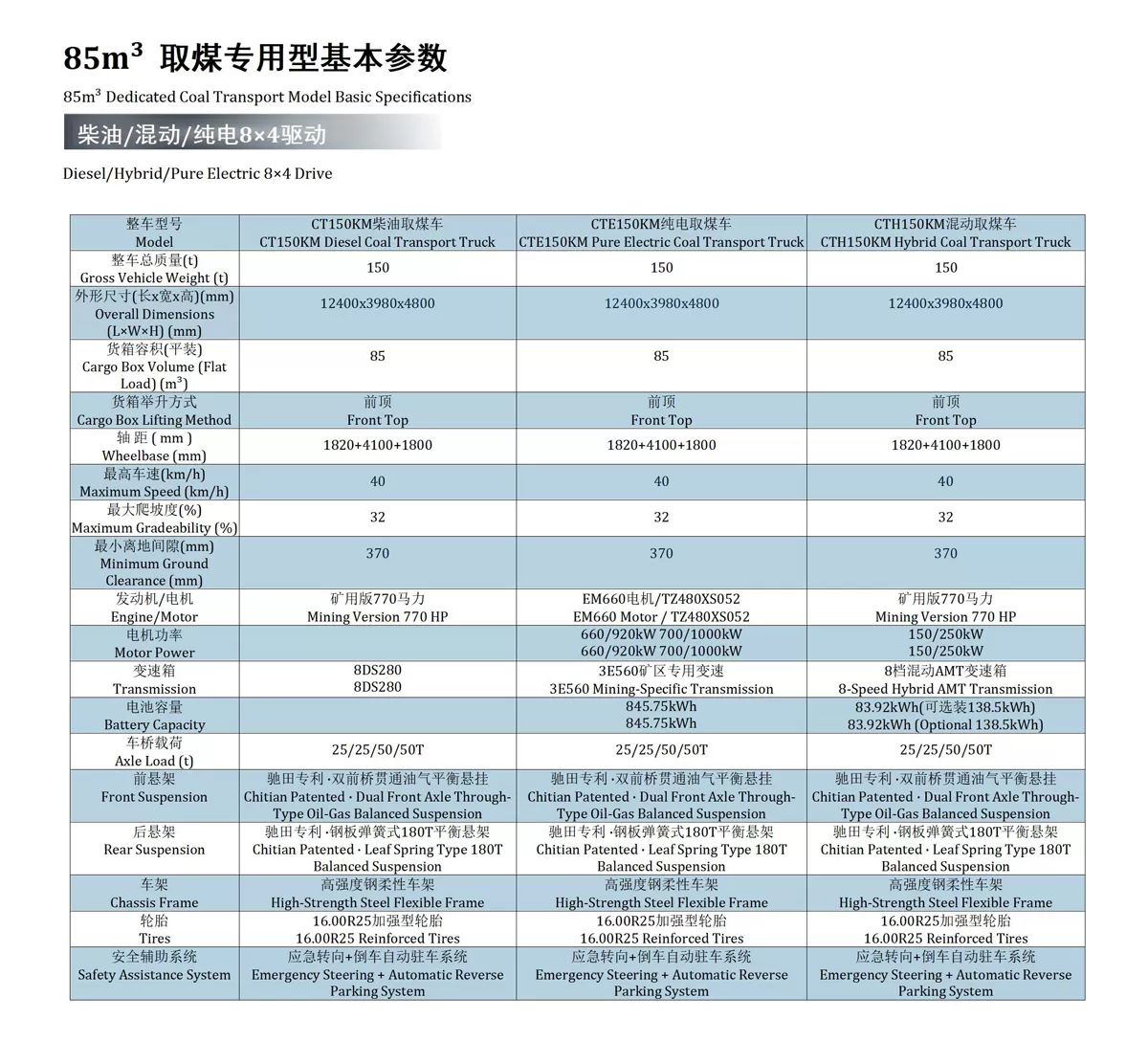

With an 85m³ cargo capacity and a four-axle load-bearing structure, the truck ensures more balanced load distribution, stable operation, and enhanced durability of load-bearing components. It is designed to easily handle the complex working conditions of open-pit coal mines.

Patent U-bolts

Provided with new upgraded leaf spring (U-bolt)system, with a bearing capacity higherthan 30%compared with those in its class

Comfortable and flexible driving experience

The mining truck is equipped with a fully hydraulic steering system, making steering light and precise. It features a left-side single-cabin design with built-in air conditioning for year-round comfort. The unique collision beam + bumper + through-frame full collision protection system ensures a significant leap in safety performance.
