MAIN CONFIGURATION

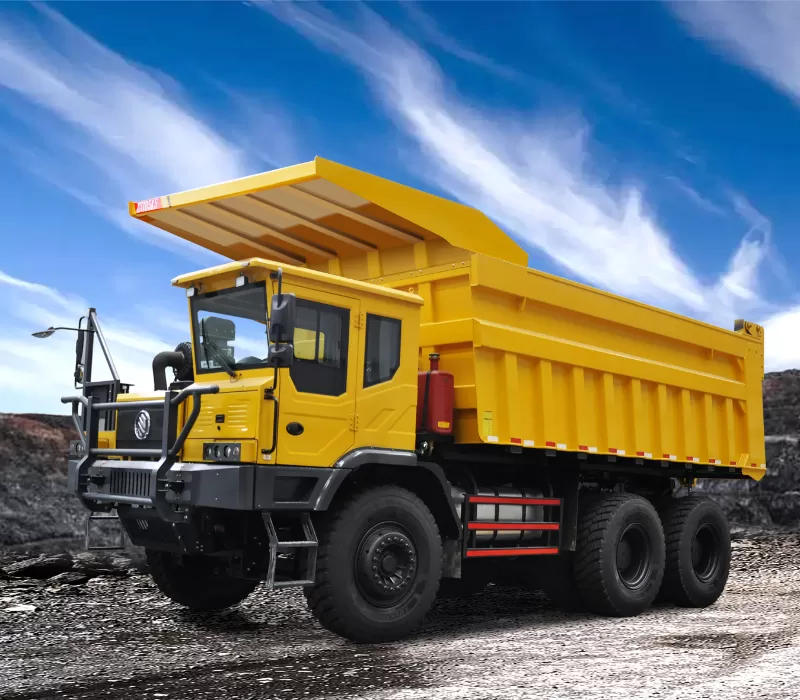

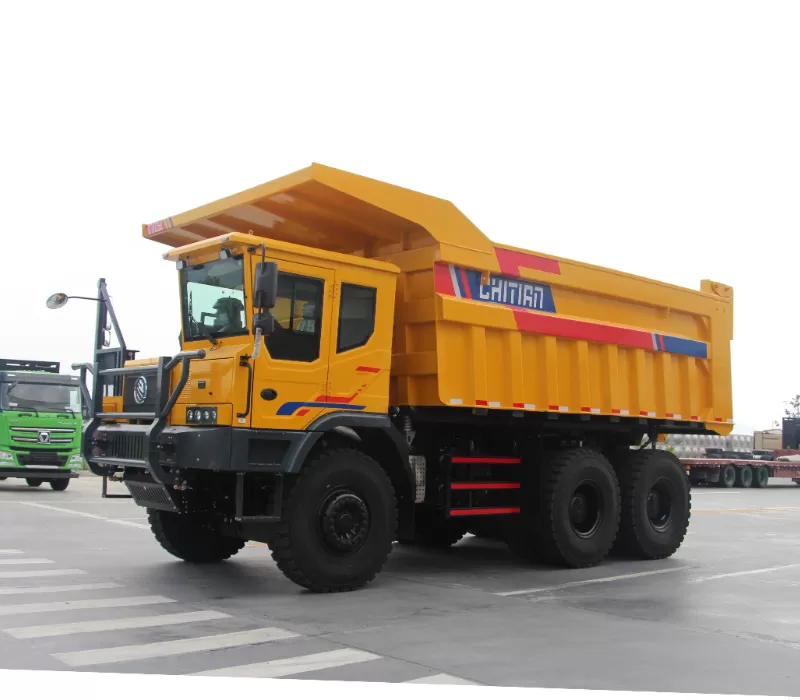

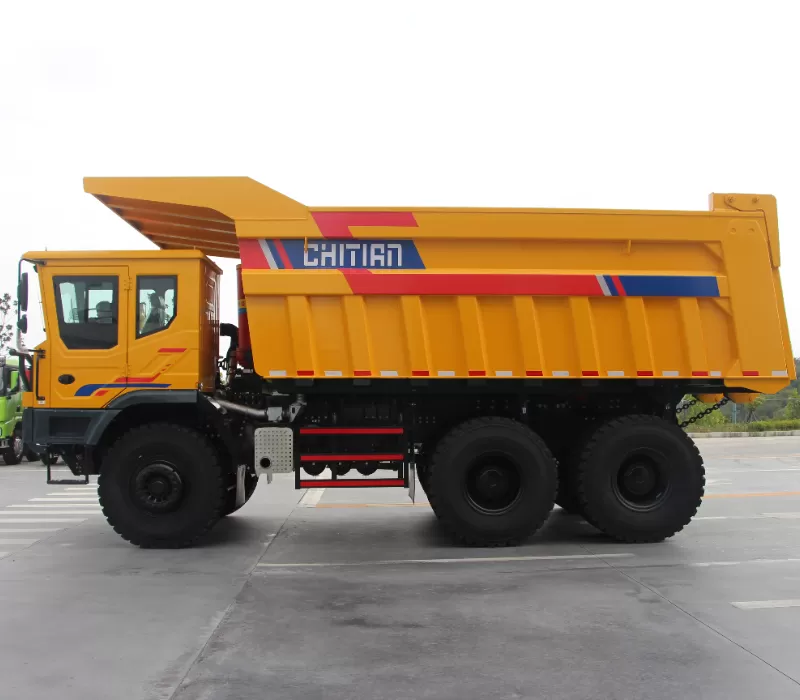

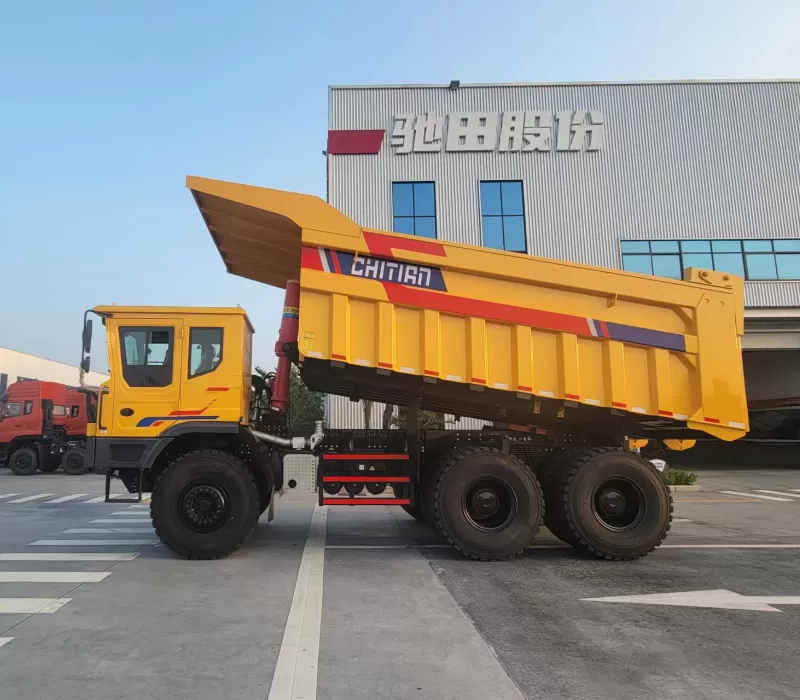

The Chitian off-road mining dump truck is a specialized mining vehicle primarily used in open-pit coal mines, non-coal mines, and water conservancy and hydropower projects.
| Body Type | U-Shaped steel body |
| Drive Type | 6x4 |
Payload | 72 tons |
Product Introduction
With 16 years of technological refinement and professional expertise, it features an advanced golden powertrain system, equipped with either a Weichai 13L 530HP or a Cummins 14L 560HP engine, paired with a Fast 260 mining-specific transmission, ensuring powerful performance and exceptional fuel efficiency under complex working conditions.
The truck adopts a 10×3 ultra-high-strength flexible frame, effectively absorbing and distributing impact loads, enhancing load-bearing capacity by 30% compared to similar products, and comes with a lifetime warranty. Additionally, the side guard guiding patent technology and the newly upgraded U-bolt leaf spring system achieve breakthrough innovations in controlling rear axle movement and improving suspension overload protection, further increasing the vehicle's load-bearing capability.

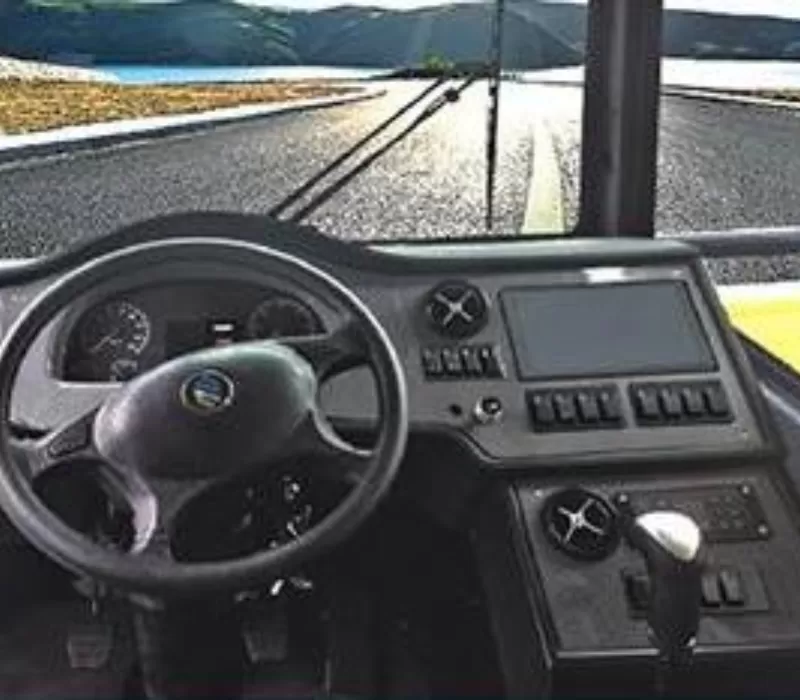

Its new split-type narrow cab design provides an expansive field of view and a comfortable air-conditioned environment, significantly enhancing adaptability for mining operations and driving comfort. This mining truck is the ideal choice for high-intensity and complex transportation tasks.
![{vo[alt]}](data/watermark/main/20250410/67f76ecdf1e43_.webp)
![{vo[alt]}](data/watermark/main/20250410/67f76ed597e8e_.webp)
![{vo[alt]}](data/watermark/main/20250410/67f76ed5b861d_.webp)
![{vo[alt]}](data/watermark/main/20250410/67f76ed5d89c5_.webp)
![{vo[alt]}](data/watermark/main/20250410/67f76ed5f3f4b_.webp)
![{vo[alt]}](data/watermark/main/20250410/67f76ed61f4fb_.webp)
Особенности продукта
Chitian Hydraulic System : Engineered for Excellence
With nearly 30 years of experience in designing and manufacturing hydraulic cylinders, Chitian has become a trusted name in the industry. Our hydraulic cylinders are equipped with high-quality seals imported from Germany, and more than 300,000 units have been installed on vehicles worldwide. Three key features make our hydraulic cylinders stand out:
Больше функций +
Chitian High-Polymer Polymer Hydraulic Oil Tank: Designed for Harsh Environments
Widely used in Chitian dump trucks, this high-performance polymer hydraulic oil tank is specially designed to withstand extreme environmental conditions—from scorching heat to severe cold, The primary material used is high-density polyethylene (HDPE), imported from Saudi Arabia. This oil tank offers several key advantages:
Больше функций +

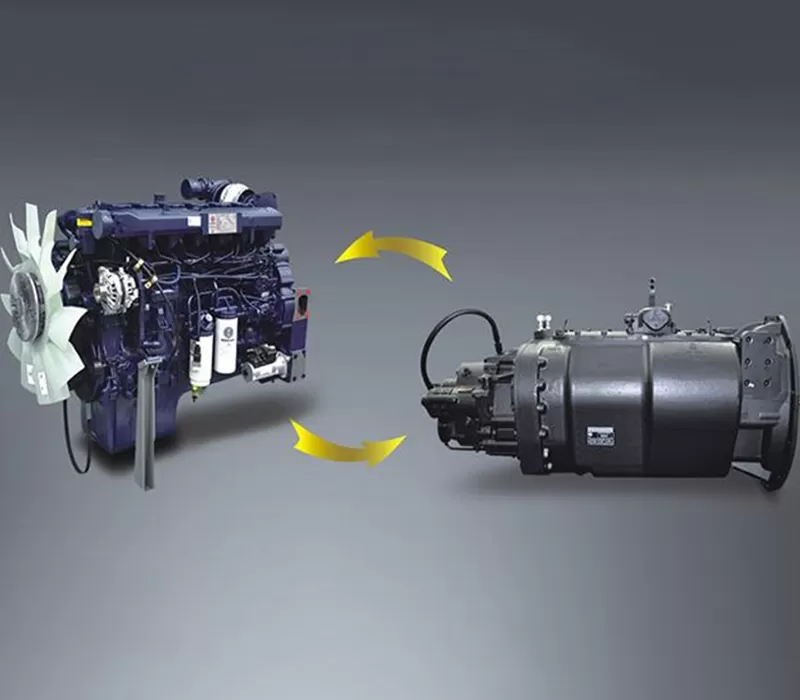

Classic high-power engine+fast transmission
Designed with Weichai /Cummins/Yuchai engine matched with FAST special transmission for mine,forming a superior power chain with stronger adaptability to operating conditions and higher economy;
Больше функций +
Constructed with ultra-high-strength flexible frame,which can efficiently absorb and release shock loads,with a bearing capacity being 30%higher than those in its class.
Больше функций +

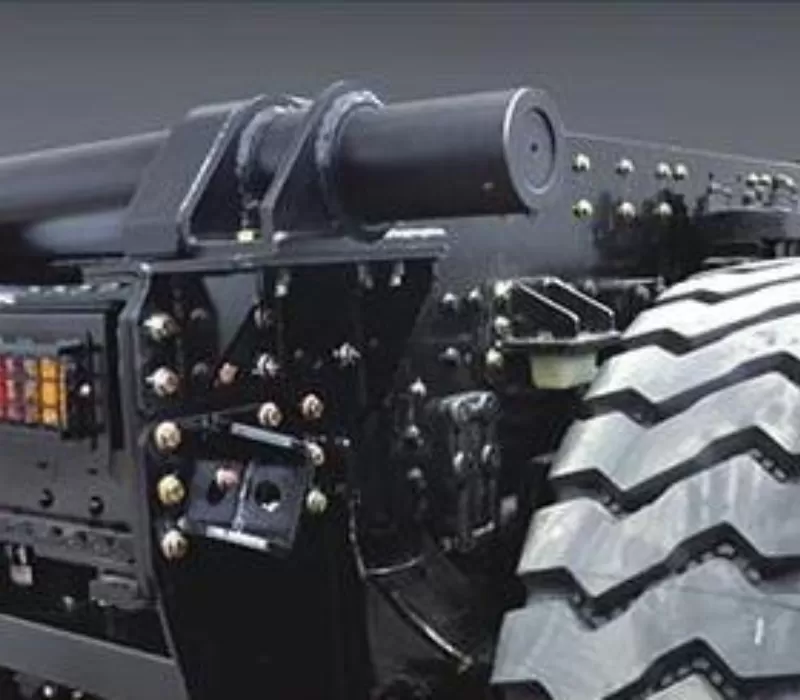

Designed with rolling-type patent technology of lateral protective guide to effectively control the movement position and stance of the middle and rear axles for higher overload protection capacity of the trunnion shaft,thrust rod,and leaf spring,which is an innovative break throughof leaf spring balancing suspension
Больше функций +

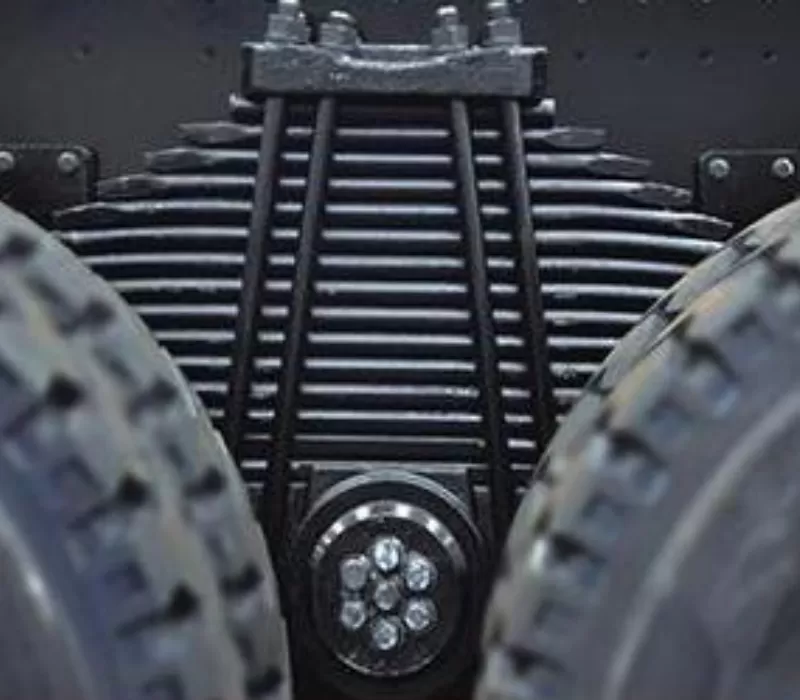

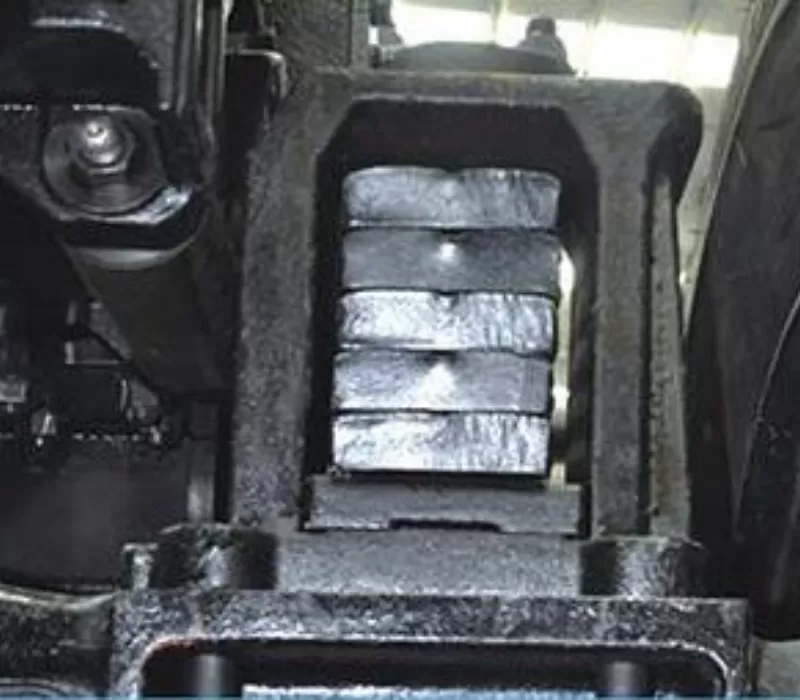

Provided with new upgraded leaf spring(U-bolt)system, with a bearing capacity higherthan 30%compared with those in its class
Больше функций +

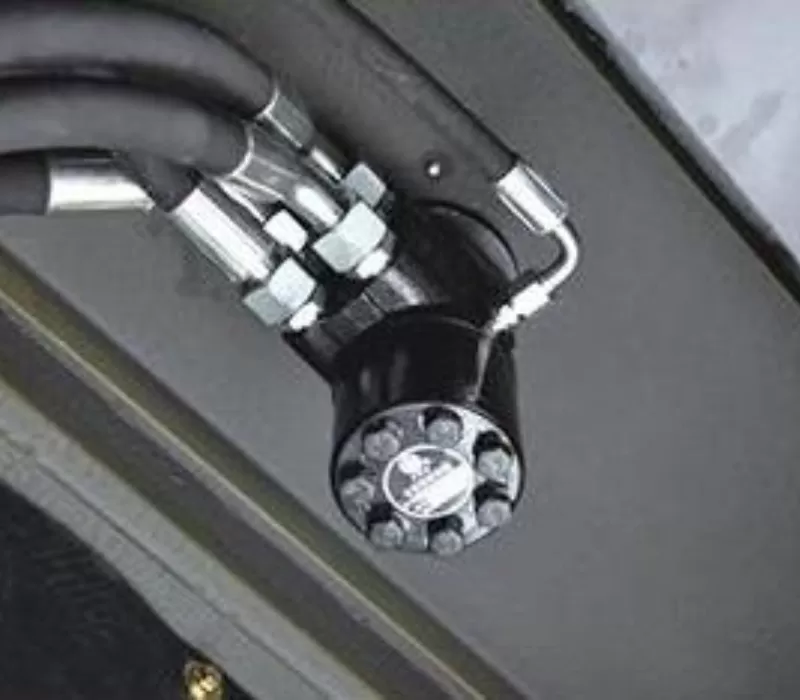

Fully hydraulically steeringauxiliary system. Fully hydraulically steering systemto effectively reduce driver's intensityof work
Больше функций +

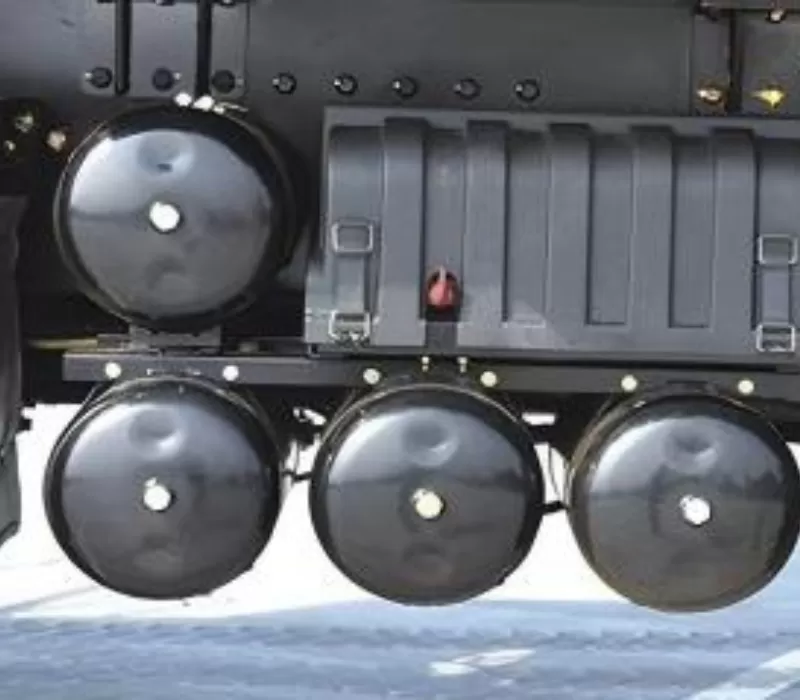

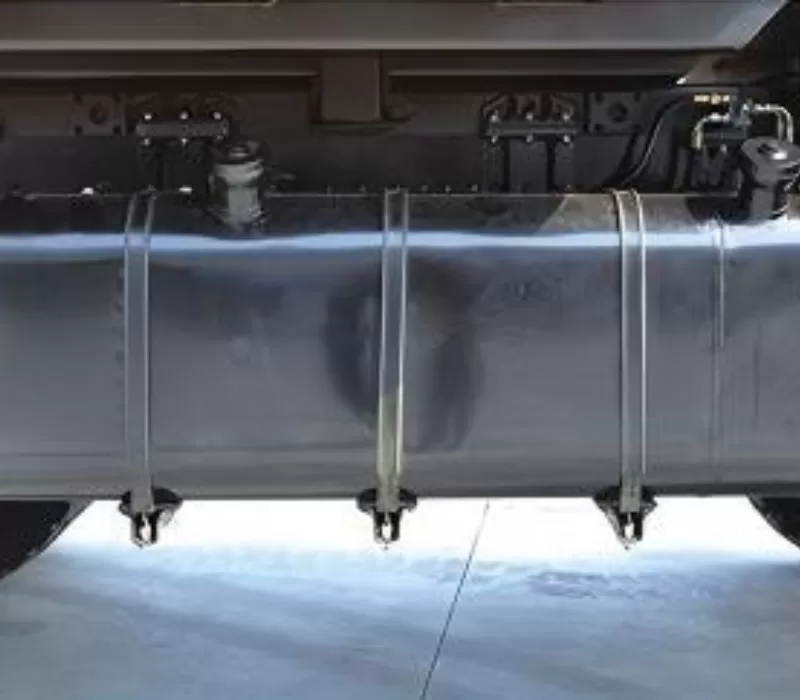

Automatically transferred large-capacity dual-chamber fuel tanks
Equipped with super integrated main and auxiliary fuel tanks to effectively accommodate cold start at low temperature, significantly reducing the fuel cost users in Northern China in winter
MAIN CONFIGURATION
Индивидуальные услуги, предлагаемые компанией Chitian
Являясь лидером в области производства надстроек для самосвалов, Chitian не только специализируется на производстве высококачественных, экологически чистых и энергоэффективных надстроек для самосвалов, но и предлагает широкий спектр индивидуальных услуг для удовлетворения разнообразных потребностей различных отраслей и сценариев применения. Наши индивидуальные услуги гибкие и разнообразные, они охватывают проектирование, производство, послепродажное обслуживание и многое другое, и все они направлены на предоставление оптимальных решений, которые помогают клиентам повысить эффективность, снизить эксплуатационные расходы и способствовать устойчивому развитию.
