The Side-Tipping Dump Truck is a type of dump truck that uses a side-tipping unloading system with side-opening doors for material discharge.
| Body Type | Corrugated edge steel body |
| Drive Type | 6x4 |
Product Introduction

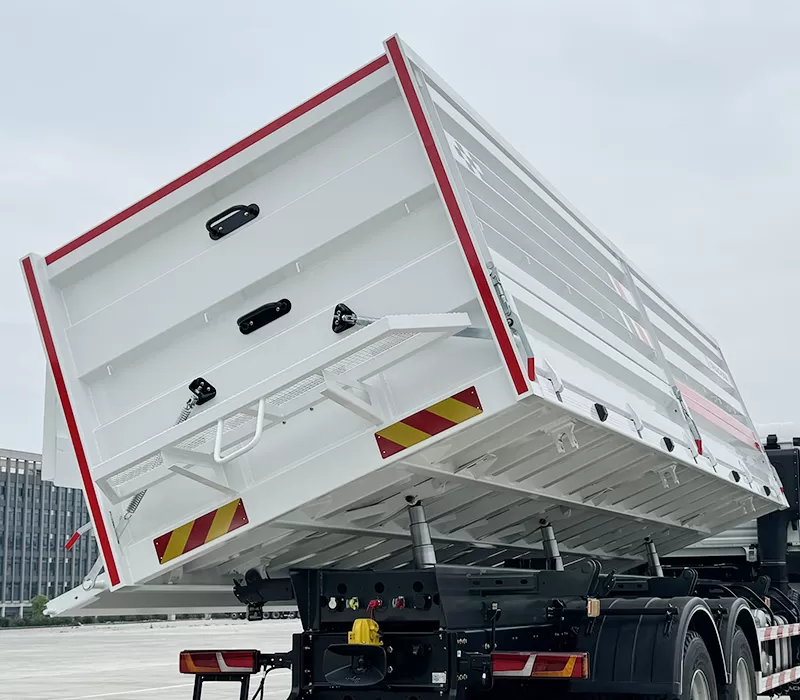

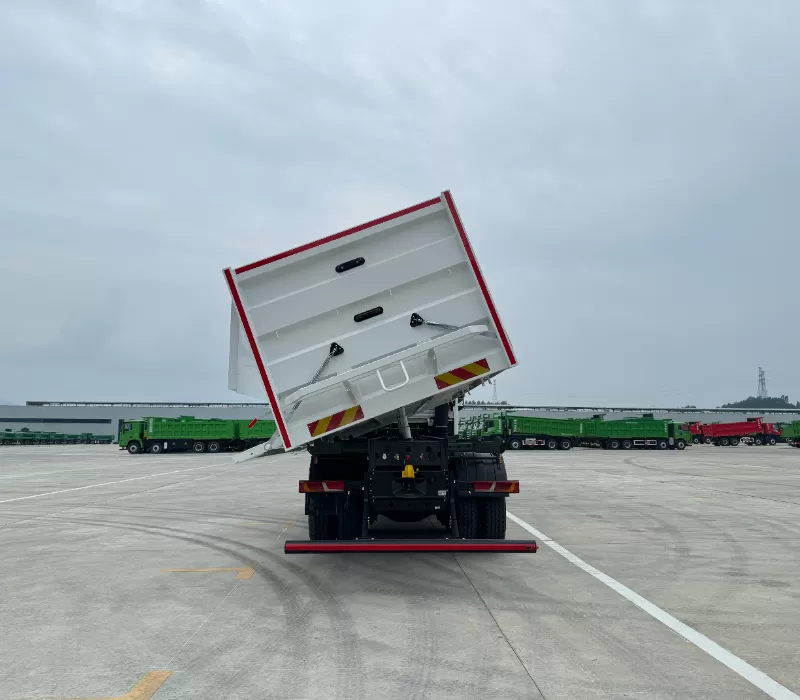

The Side-Tipping Dump Truck is a heavy-duty transport vehicle specially designed for complex working conditions. It features a side-tipping unloading system, allowing the cargo bed to unload to the left or right. The lifting process is powered by a set of multi-stage piston cylinders (3 or 4 cylinders), mounted in the middle of the auxiliary frame. The cylinders are arranged in a parallel line to the auxiliary frame, with the lower end fixed on the lower cylinder bracket, and the upper end connected to the longitudinal beams of the cargo bed. This truck is primarily used for transporting light-density materials such as coal, sand, and grain, making it one of the best choices for such applications.
![{vo[alt]}](data/watermark/main/20250410/67f766bc6c575_.webp)
![{vo[alt]}](data/watermark/main/20250410/67f766e98a447_.webp)
![{vo[alt]}](data/watermark/main/20250410/67f766e9f3fc8_.webp)
![{vo[alt]}](data/watermark/main/20250410/67f766ea1fd47_.webp)
![{vo[alt]}](data/watermark/main/20250410/67f766ea3b2ce_.webp)
![{vo[alt]}](data/watermark/main/20250410/67f766ea54914_.webp)
![{vo[alt]}](data/watermark/main/20250410/67f766ea6df59_.webp)
Особенности продукта
High-Quality Shacman Chassis: Providing a Solid Foundation for Your Transport Needs
The chassis we use is sourced from Shacman, an industry-leading manufacturer of heavy-duty trucks. Shacman chassis are renowned for their exceptional load-bearing capacity, stability, and durability, making them particularly suitable for harsh environments such as mining sites and construction sites.
Больше функций +
Chitian Hydraulic System : Engineered for Excellence
With nearly 30 years of experience in designing and manufacturing hydraulic cylinders, Chitian has become a trusted name in the industry. Our hydraulic cylinders are equipped with high-quality seals imported from Germany, and more than 300,000 units have been installed on vehicles worldwide. Three key features make our hydraulic cylinders stand out:
Больше функций +
Chitian High-Polymer Polymer Hydraulic Oil Tank: Designed for Harsh Environments
Widely used in Chitian dump trucks, this high-performance polymer hydraulic oil tank is specially designed to withstand extreme environmental conditions—from scorching heat to severe cold, The primary material used is high-density polyethylene (HDPE), imported from Saudi Arabia. This oil tank offers several key advantages:
Больше функций +
Adaptability to Different Work Environments & Flexible Unloading

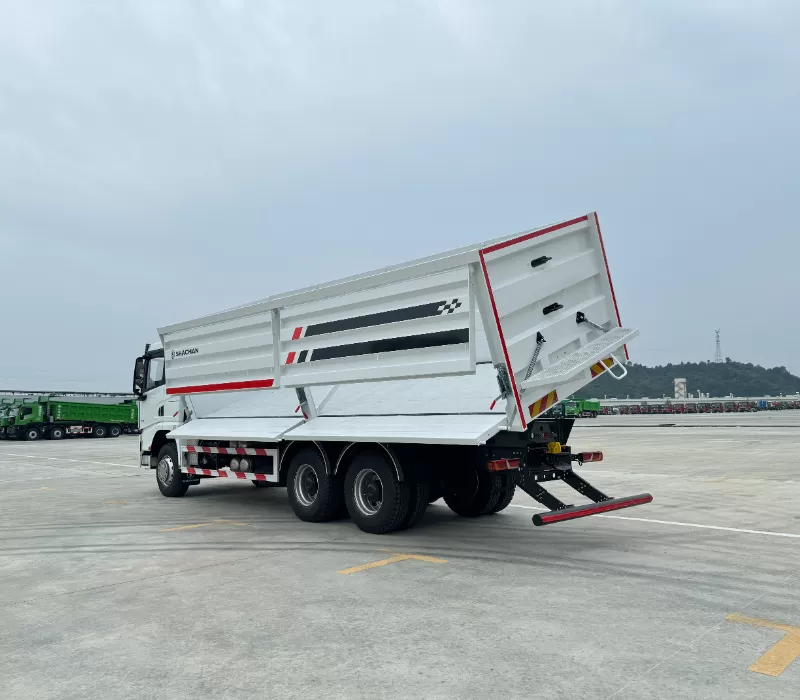

The design that allows unloading from either side provides the dump truck with greater maneuverability in narrow or complex areas, overcoming space constraints. The addition of a rear platform enables operators to easily inspect the interior of the cargo bed, ensuring the truck can adapt to various working conditions.
Больше функций +
Corrugated Panel Cargo Bed Structure

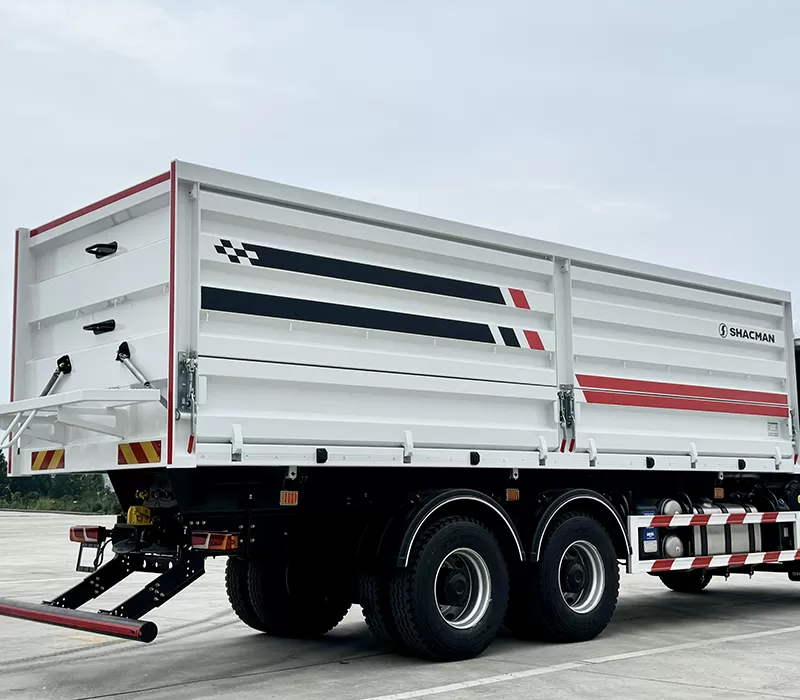

The cargo bed's exterior features wavy or corrugated panel design, where the curved shape enhances the rigidity and bending resistance of the panels, maintaining high strength even with thinner materials. This geometric structure achieves a lightweight design, effectively reducing the vehicle's weight while ensuring strength, ultimately improving transportation efficiency.
Больше функций +
The cargo box is made of 700MPa high-strength steel, with the side panels rolled and formed in a single pass. This design offers the advantages of light weight, high strength, an aesthetic appearance, and a long service life.
Больше функций +Индивидуальные услуги, предлагаемые компанией Chitian
Являясь лидером в области производства надстроек для самосвалов, Chitian не только специализируется на производстве высококачественных, экологически чистых и энергоэффективных надстроек для самосвалов, но и предлагает широкий спектр индивидуальных услуг для удовлетворения разнообразных потребностей различных отраслей и сценариев применения. Наши индивидуальные услуги гибкие и разнообразные, они охватывают проектирование, производство, послепродажное обслуживание и многое другое, и все они направлены на предоставление оптимальных решений, которые помогают клиентам повысить эффективность, снизить эксплуатационные расходы и способствовать устойчивому развитию.
